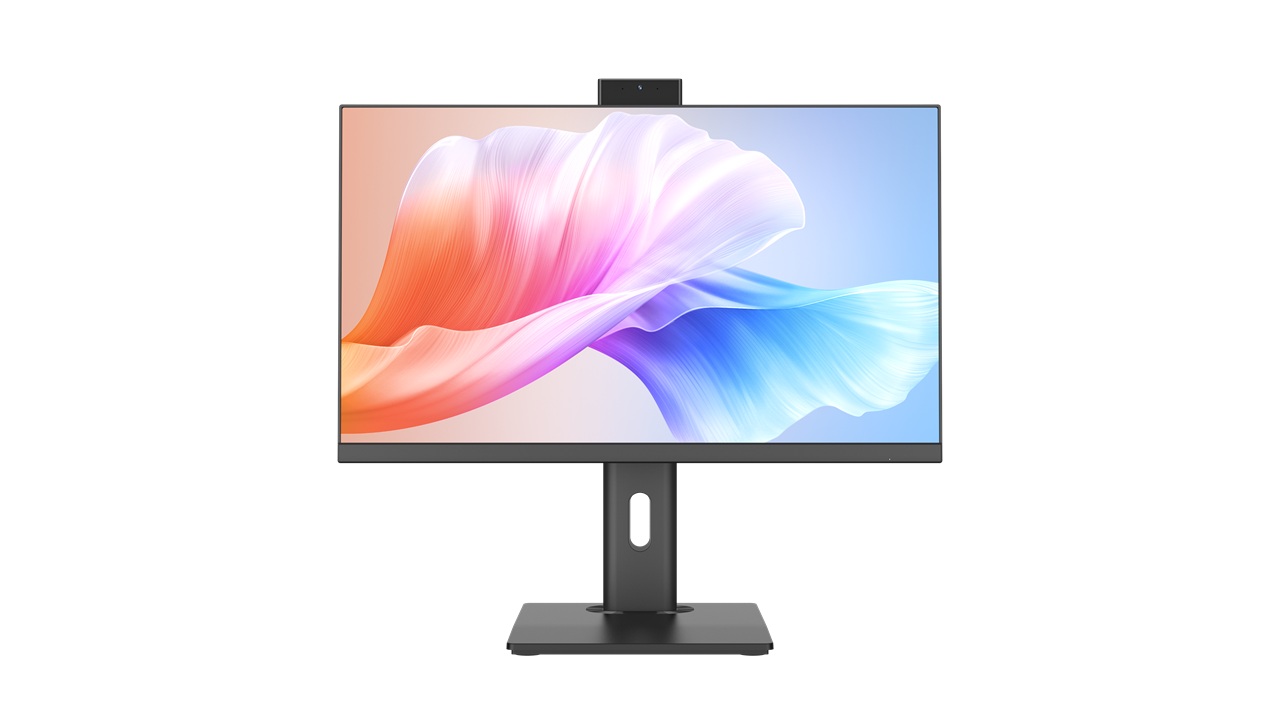

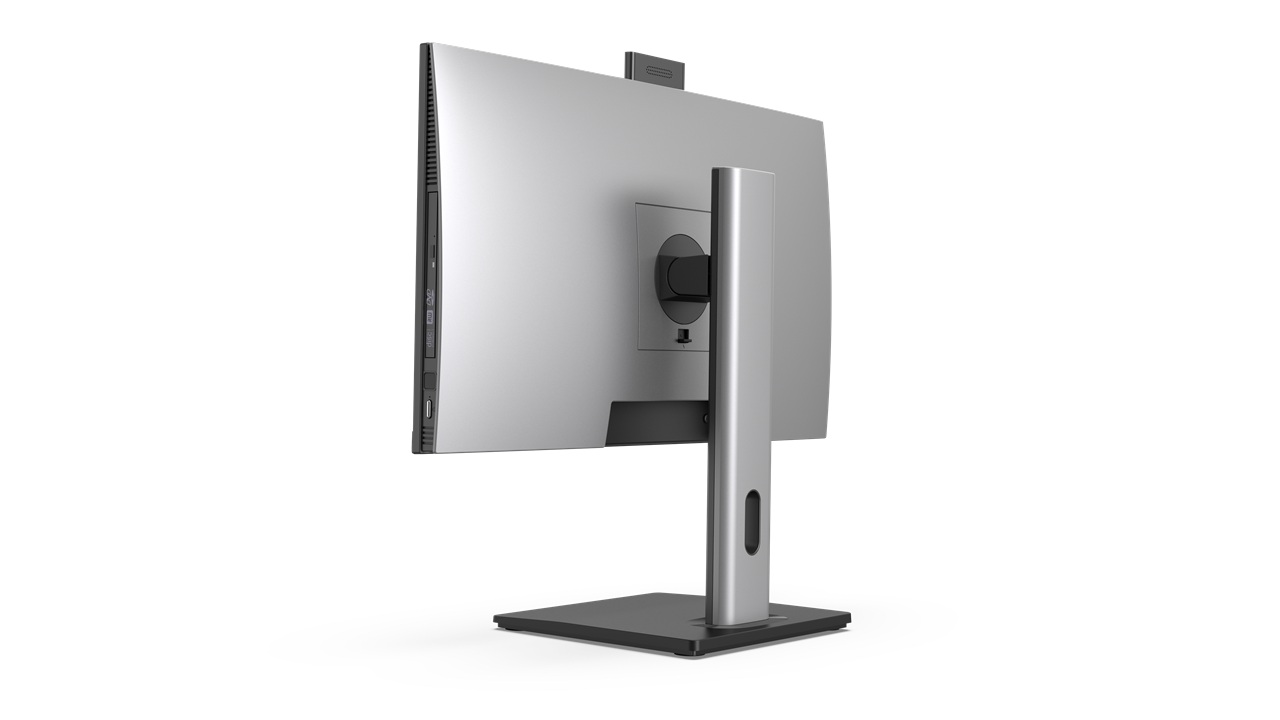

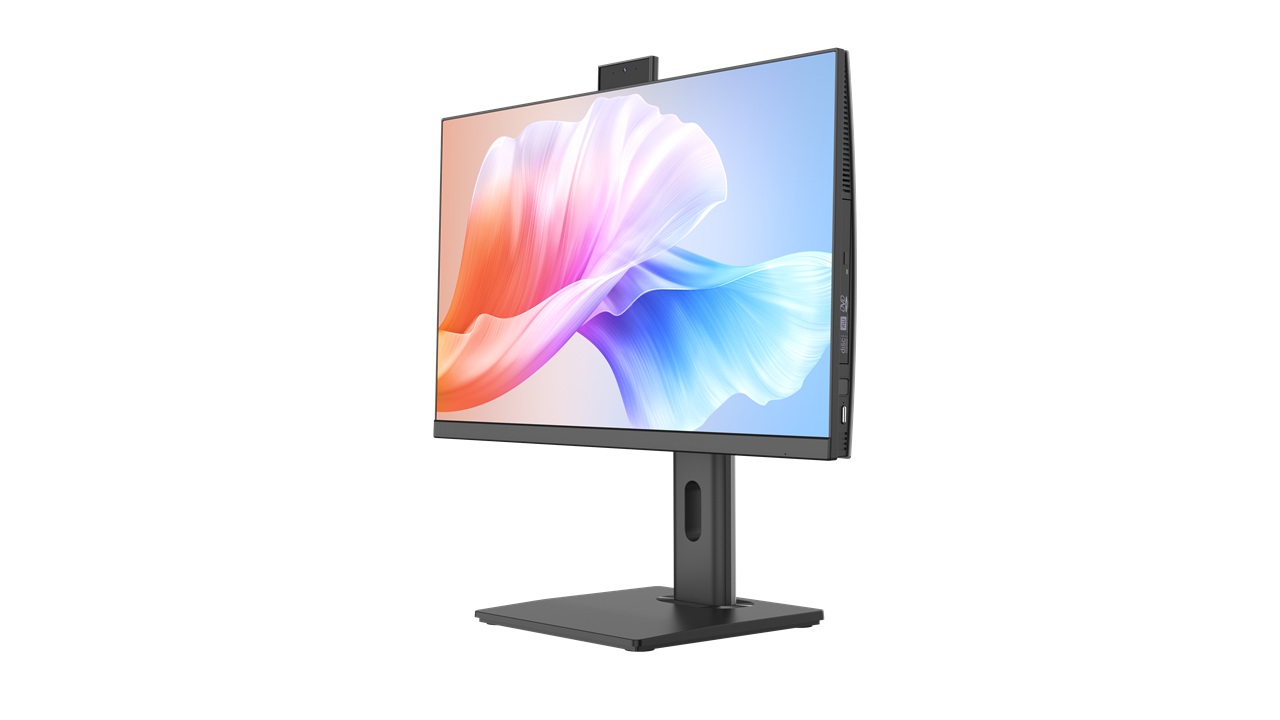

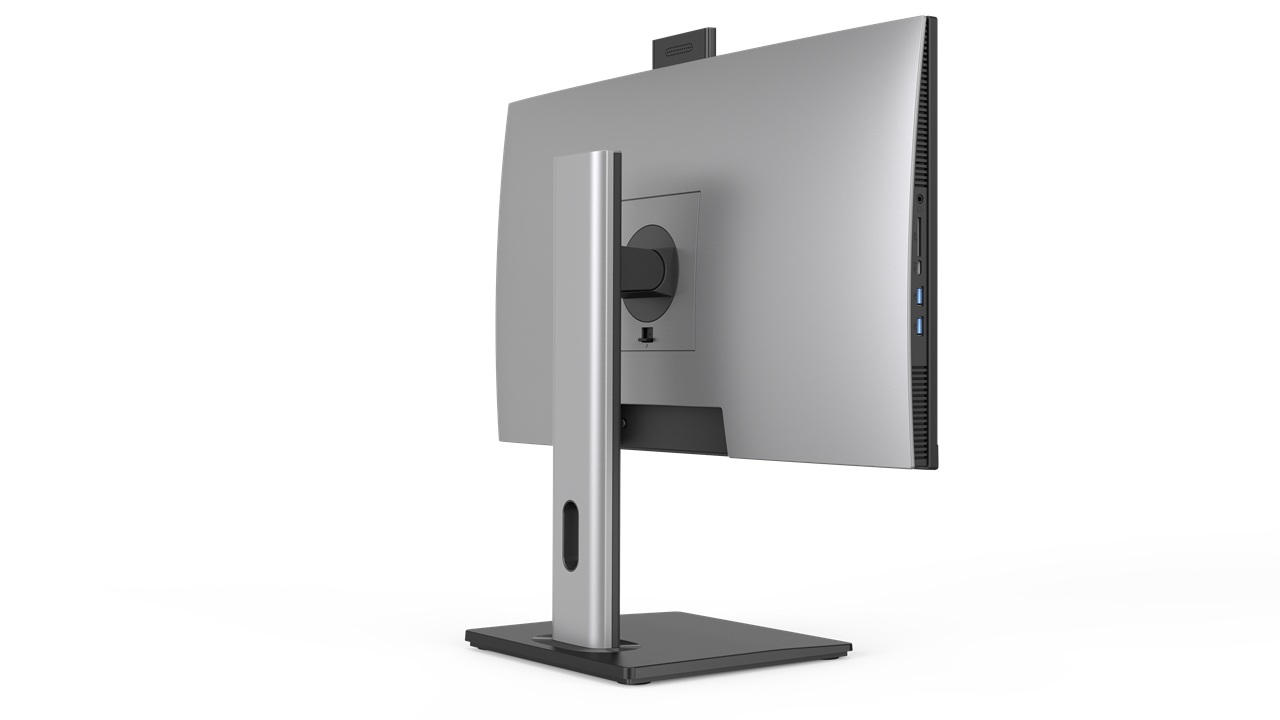

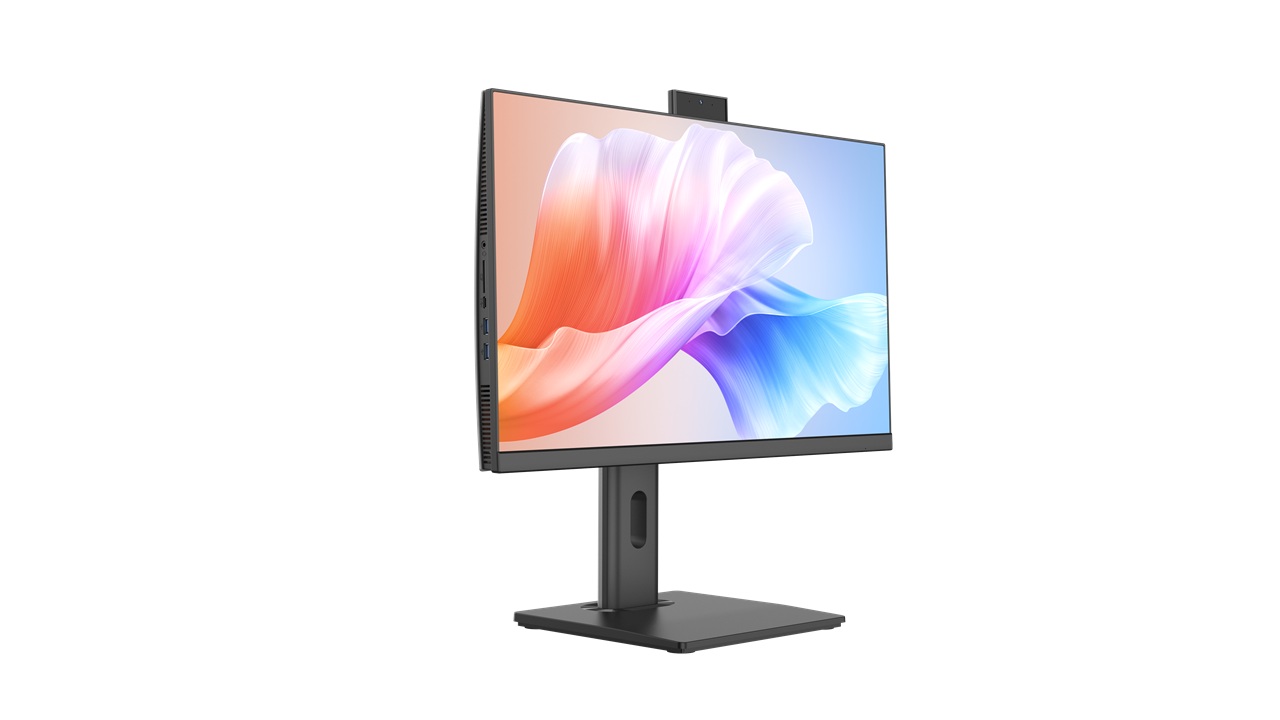

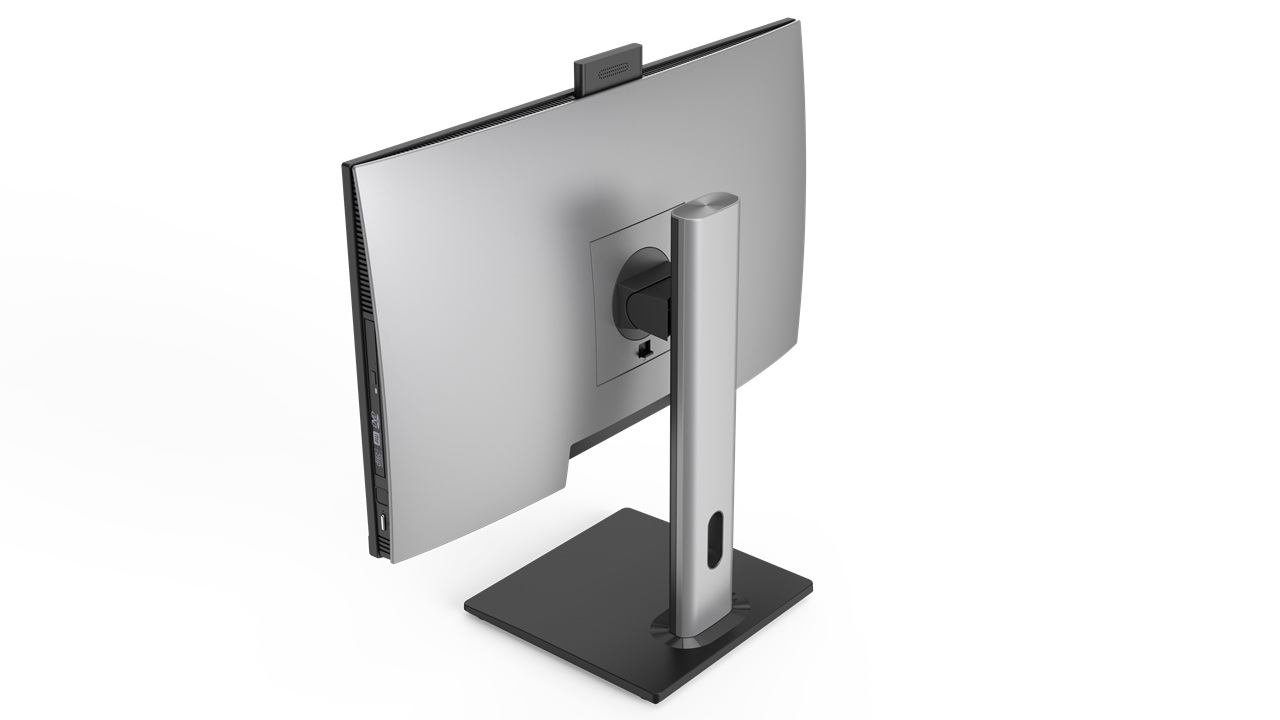

VD238 / Essential AIO. Exceptional Value.

Fingerprint Unlock, HAS, tailored for Personal and Business
  • Dual Channel Memory
    Support 2 x SO-DIMM DDR5/DDR4 Max. 64GB
  • Flexible Side IO
    USB 2.0 Type C / Audio Combo Jack / SD Card Reader
  • Extra Options
    1 x 2.5
  • Pop up Camera
    3MP/5MP/8MP Solutions + Single/Dual Mic
  • User Friendly Design
    Brightness +/-, Kensington Lock, Fingerprint Unlock
  • Color
    Black / White / Silver

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name VD238
Display 23.8 inch, FHD (1920 x 1080) 16:9, IPS level, Wide-Angle View, 250 nits, 3-Border Bezel-free
Motherboard Support Standard 170 x 170 mm Thin Mini ITX Motherboard
(Intel H810/B760/Q670/B660/H610, Intel i7-13620H)
Processor - Intel Socket LGA1851 for Core Ultra CPU (Series 2) Ultra 9/ Ultra 7/Ultra 5 (Up to 65W TDP)
- Intel Socket LGA1700 for 14th / 13th / 12th Gen Intel Core i7/ i5/ i3, Penti-um Gold / Silver and Celeron CPU (Up to 65W TDP)
- Intel 13th Gen Intel Core i7/ i5/ i3 Mobile CPU (Up to 65W TDP)
Graphics Integrated Graphics
Memory From Motherboard
Support 2 x SO-DIMM Max. 64GB DDR5
Support 2 x SO-DIMM Max. 64GB DDR4
Storage From Motherboard
1 x M.2 M Key 2280 NVMe SSD
Wireless Data Network M.2 Wi-Fi 7/6E/6/5 + Bluetooth 5.x
Camera Pop up 3MP Camera + Single/Dual Mic
Optional : 5MP/8MP Camera + Single/Dual Mic
Back I/O Ports From Motherboard
1 x DC In (5.5/2.5 mm)
1 x HDMI Out
1 x VGA
2 x USB 3.2 Gen1 Type A (5Gbps)
1 x Realtek 1Gb Ethernet port
2 x USB 3.2 Gen1 Type A (5Gbps)
2 x Audio jacks
Side I/O Ports 2 x USB 2.0 Type A / 2 x USB 3.2 Gen1 Type A (5Gbps)
Optional :
- 1 x USB 2.0 Type C
- 1 x Audio Combo Jack
- 1 x SD Card Reader
Extra I/O 1 x 2.5" SSD SATA
DVD Optical Drive (Optional)
Button Power Button, Brightness+/-
Speaker 2 x 3W Speakers
Power 120W Adaptor
Security Kensington Lock
Fingerprint Unlock
Stand Height Adjustable Stand
Elevation: 130 mm
Tilt: -5°~20°
Swivel: -80°~80°
Rotation: -90°~90°
Accessories VESA-Mounted 75*75mm
Color Black/White/Silver
