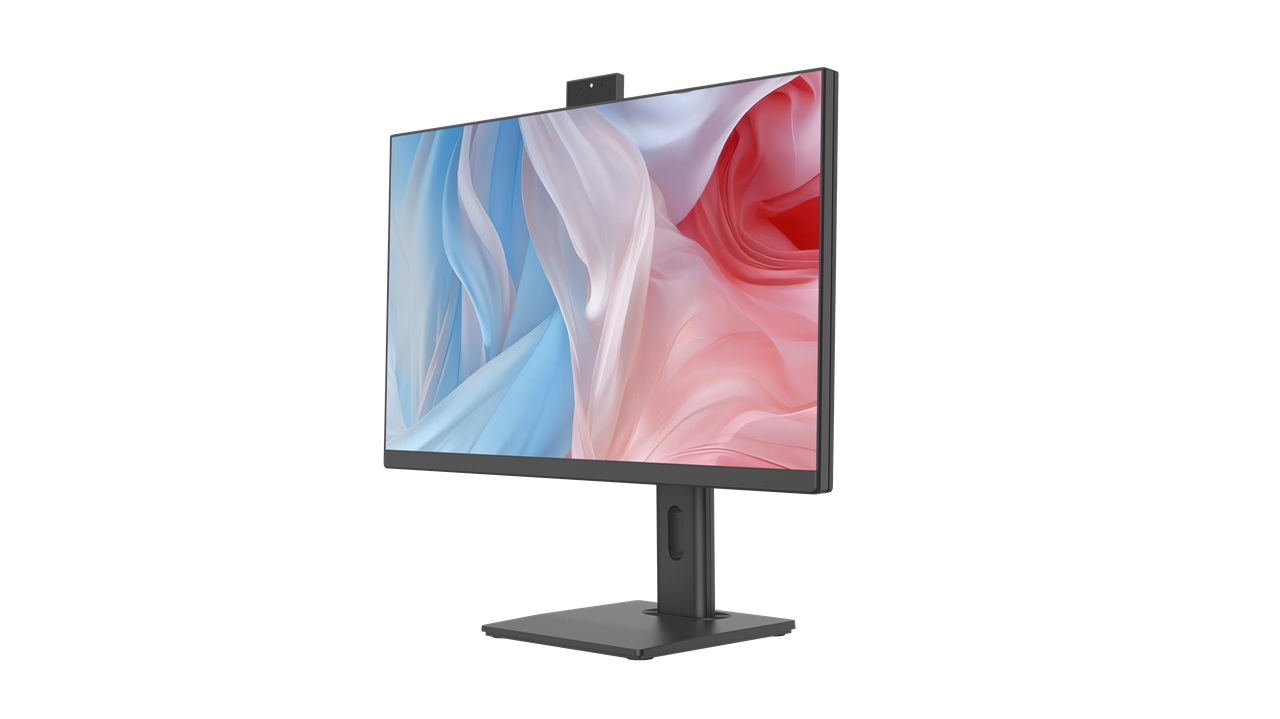

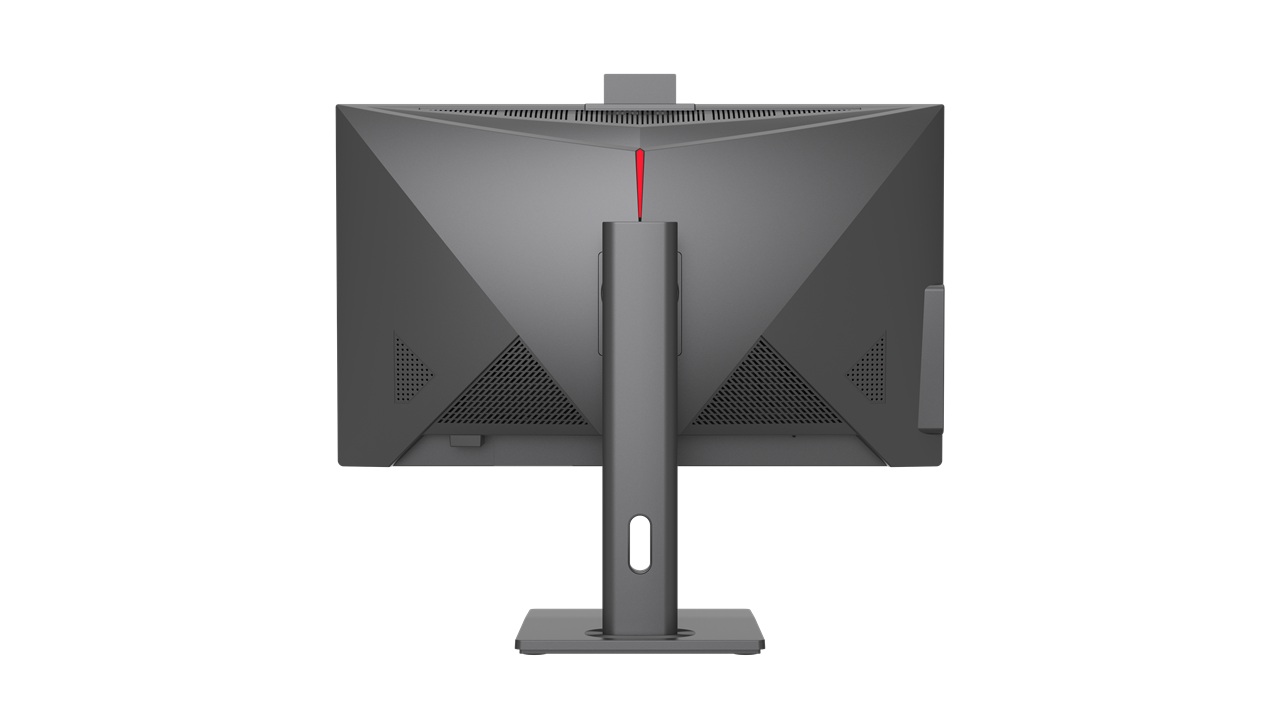

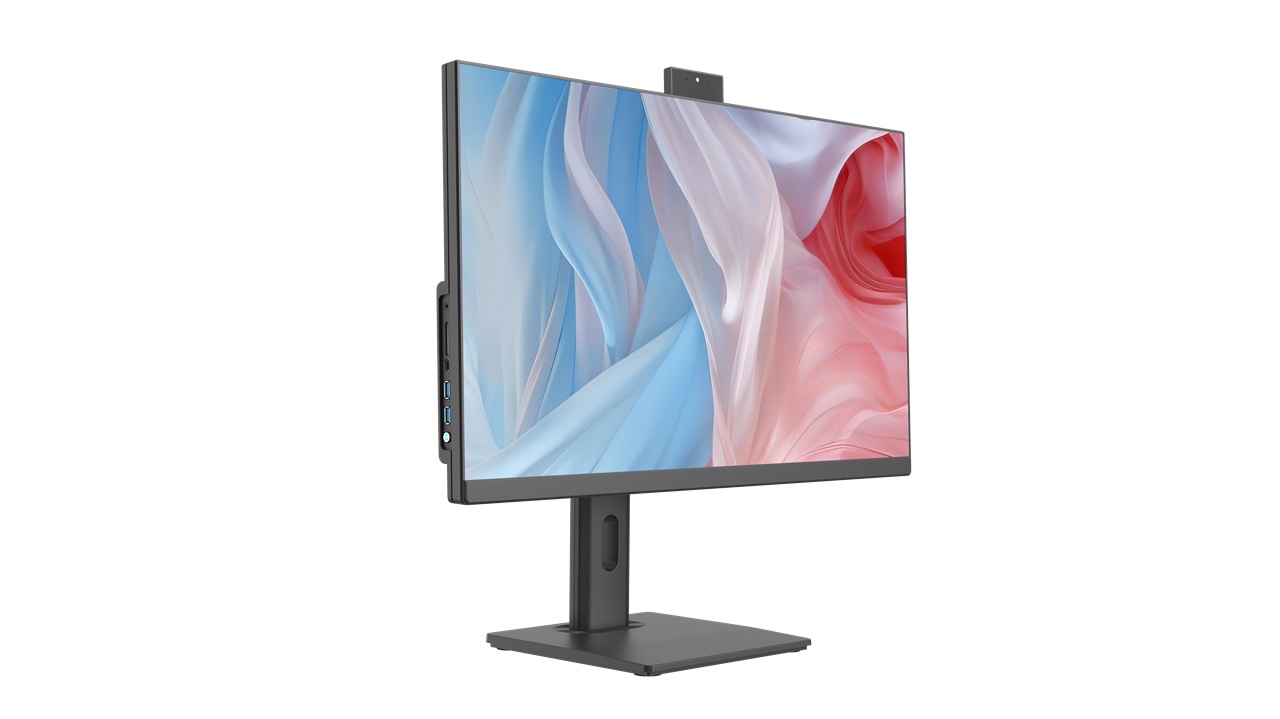

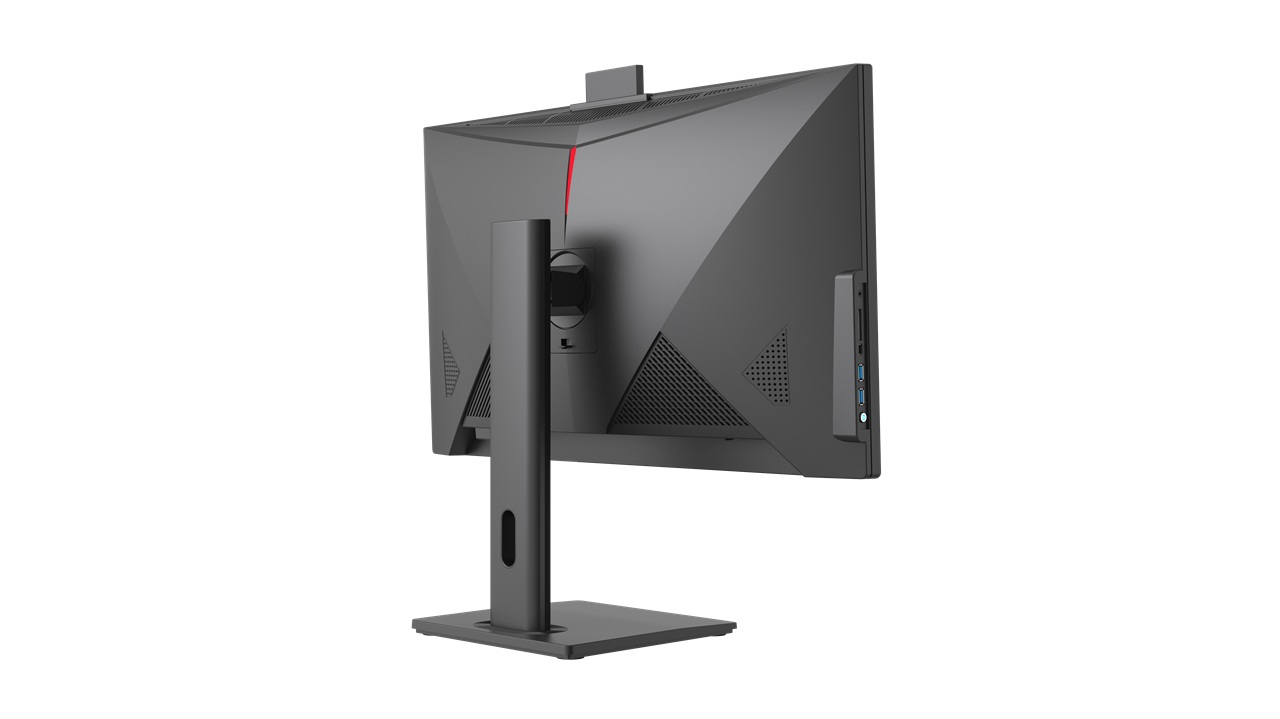

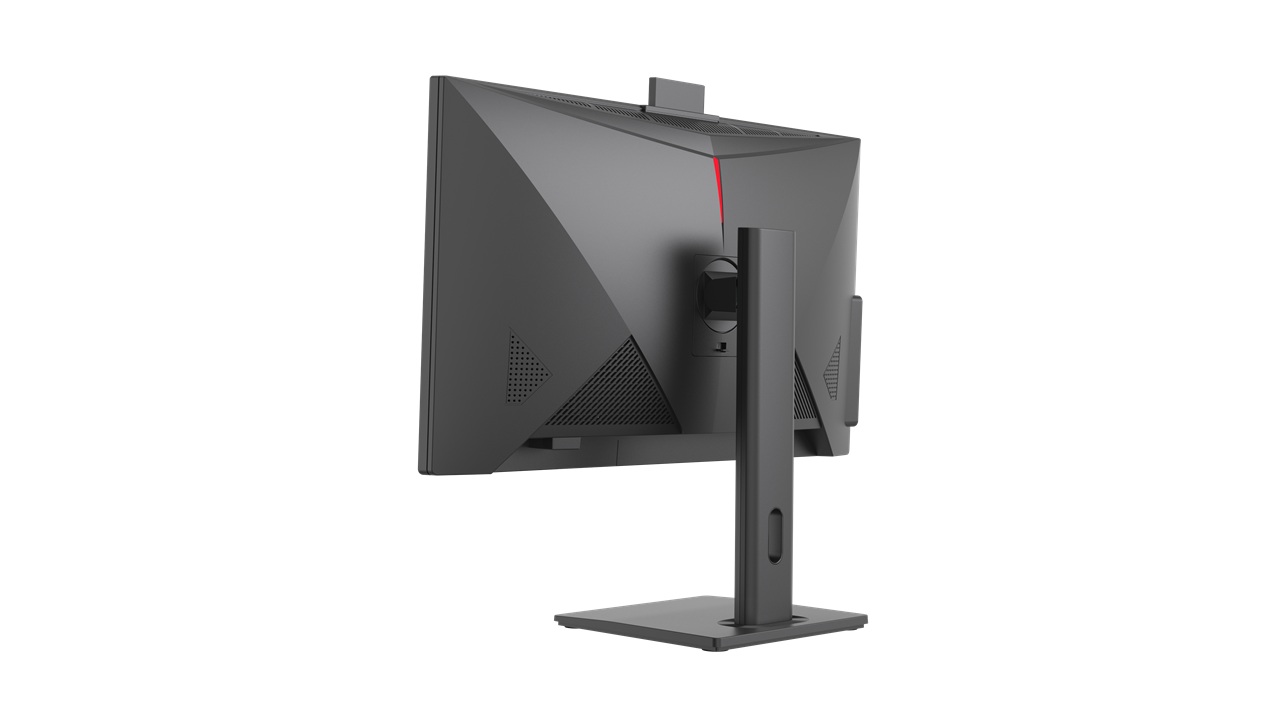

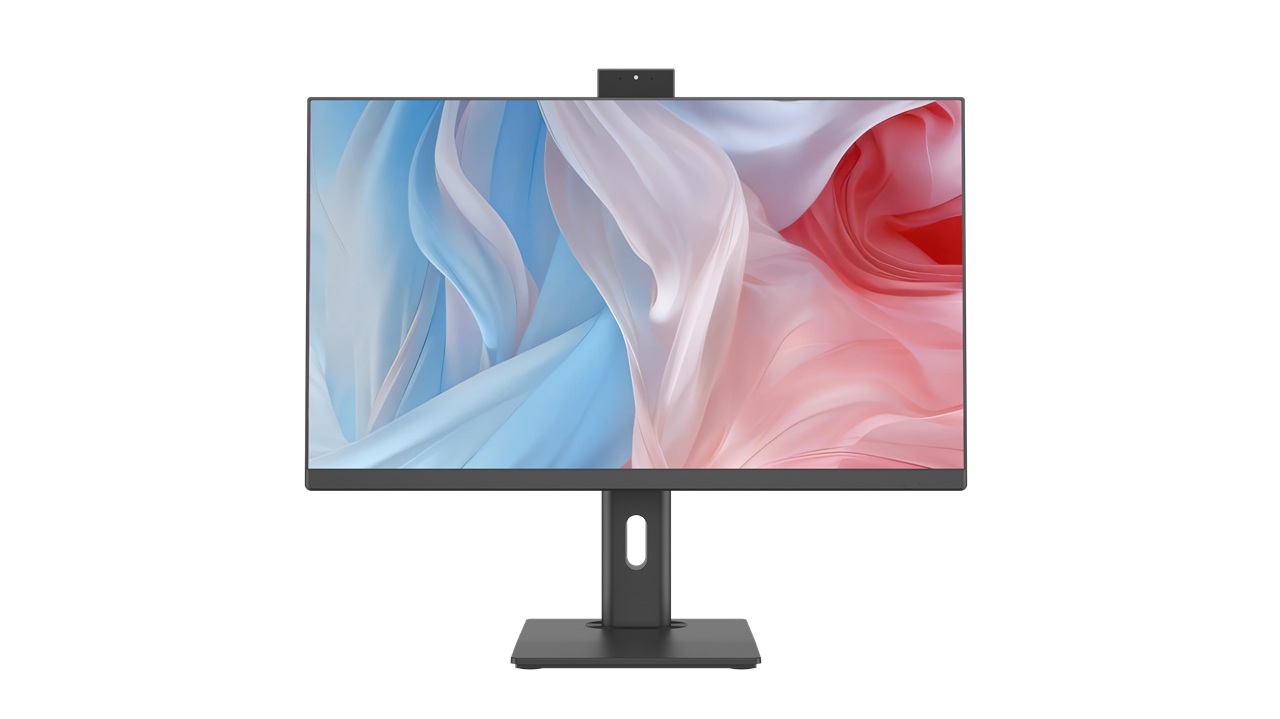

VF270 / Built to Render. Ready to Perform.

2 slot Independent GPU, HAS, work or play in total comfort.
  • Independent 2 slot GPU
    Up to 120W, Max 245*135*40 mm
  • Dual Channel Memory
    Support 2 x SO-DIMM DDR5/DDR4 Max. 64GB
  • Versatile Side IO Options
    USB 2.0 Type C / Audio Combo Jack / SD Card Reader
  • Pop up Camera
    3MP/5MP/8MP Camera + Single/Dual Mic
  • User Friendly Design
    Brightness +/-, Kensington Lock
  • Adaptor
    120W, 300W for Independent GPU (Optional)
  • Color
    Black

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name VF270
Display 27 inch, FHD (1920 x 1080), 16:9, 60Hz, IPS, Wide-Angle View, 250 nits, 3-Border Bezel-free
Motherboard Support Standard 170 x 170 mm Thin Mini ITX Motherboard
(Intel H810/B760/Q670/B660/H610, Intel i7-13620H)
Processor - Intel Socket LGA1851 for Core Ultra CPU (Series 2) Ultra 9/ Ultra 7/Ultra 5 (Up to 65W TDP)
- Intel Socket LGA1700 for 14th / 13th / 12th Gen Intel Core i7/ i5/ i3, Penti-um Gold / Silver and Celeron CPU (Up to 65W TDP)
- Intel 13th Gen Intel Core i7/ i5/ i3 Mobile CPU (Up to 65W TDP)
Graphics Independent 2slot GPU up to 120W (245*135*40 mm )
*Only compatible with special H610 Thin Mini ITX Motherboard
Memory From Motherbaord
Support 2 x SO-DIMM Max. 64GB DDR5
Support 2 x SO-DIMM Max. 64GB DDR4
Storage From Motherboard
1 x M.2 M Key 2280 NVMe SSD
Wireless Data Network M.2 Wi-Fi 7/6E/6/5 + Bluetooth 5.x
Camera Pop up 3MP Camera + Single/Dual Mic
Optional : 5MP/8MP Camera + Single/Dual Mic
Back I/O Ports From Motherboard
1 x DC In (5.5/2.5 mm)
1 x HDMI Out
1 x VGA
2 x USB 3.2 Gen1 Type A (5Gbps)
1 x Realtek 1Gb Ethernet port
2 x USB 3.2 Gen1 Type A (5Gbps)
2 x Audio jacks
Side I/O Ports 2 x USB 2.0 Type A / 2 x USB 3.2 Gen1 Type A (5Gbps)
Optional :
- 1 x USB 2.0 Type C
- 1 x Audio Combo Jack
- 1 x SD Card Reader
Extra I/O N/A
DVD N/A
Button Power Button, Brightness+/-
Speaker 2 x 3W Speakers
Power 120W Adaptor
300W Adaptor for Independent GPU (Optional)
Security Kensington Lock
Stand Regular Stand
Accessories VESA-Mounted 75*75mm/100*100mm
Color Black
